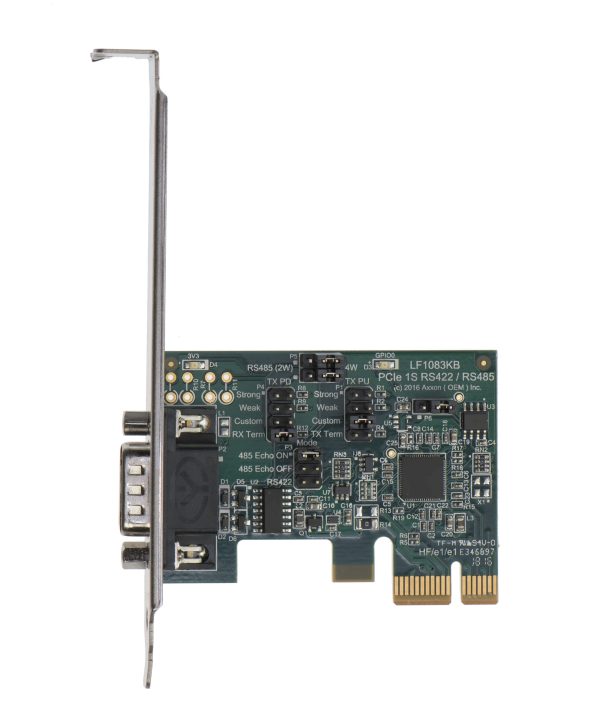

LF1083KB Native PCI Express High Speed RS422/RS485 Serial Adapter

Description

• PCI Express Gen1, Gen2, Gen3 expansion slot compatible (x1, x2, x4, x8, x16 lane)

• RS422 / RS485 (2w/4w) jumper selectable modes

• Enhanced 16550 / 16650 / 16750 / 16950 UART modes

• 9-bit multi-drop support

• DB9 Male connector (TX+, TX-, RX+, RX-, Ground)

• Full (4-wire)  duplex pin out support (TX+, TX-, RX+, RX-)

• Half (2-wire) duplex pin out support (D+, D-)

• Local Echo ON / OFF support (RS485)

• Low or Full Height mounting bracket support

• High speed design (460kbps – factory default) with DMA support for autonomous data transfers without CPU intervention

• Optional support for up to 20 Mbps data rates (contact us for more details)

• ±15kv ESD and short-circuit protected RS422/RS485 compliant transceiver

• Fail-safe biased design with support for assorted bias configurations

• Hardware state machine auto-enables RS485 transmitter

• Supported on Windows (32 & 64 bit) and Linux (32 & 64 bit)

• FCC, CE, RoHS, Pb-free and Conflict of Minerals compliant

Order P/N Axxon LF1083KB-500 (Max 500kbps)

Order P/N Axxon LF1083KB-20 (Max 20Mbps)
